Liquefied Gas Carriers 269
Weather protective
cover External
insulation
Vertical
conditionพื่อการศึกษาเท่านั้น---
tubular
support for
piping and
งานห้องสมุด ศูนย์ฝกพาณิชย์นาวี
access
Water Ballast
Drip tray for small
leak detection
ึ
Warm condition
--- ใช้เ 9% Nickel
Cold
steel
equatorial
ring
Method of absorbing
expansion/contraction

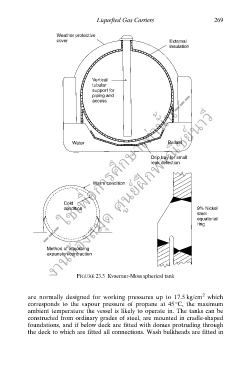

FIGURE 23.3 Kvaerner-Moss spherical tank
2
are normally designed for working pressures up to 17.5 kg/cm which
corresponds to the vapour pressure of propane at 45 °C, the maximum
ambient temperature the vessel is likely to operate in. The tanks can be
constructed from ordinary grades of steel, are mounted in cradle-shaped
foundations, and if below deck are fitted with domes protruding through
the deck to which are fitted all connections. Wash bulkheads are fitted in
