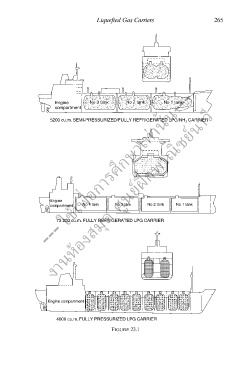

Liquefied Gas Carriers 265
--- ใช้เพื่อการศึกษาเท่านั้น---
งานห้องสมุด ศูนย์ฝกพาณิชย์นาวี
Engine No 3 tank No 2 tank No 1 tank
compartment
5200 cu.m. SEMI-PRESSURIZED/FULLY REFRIGERATED LPG/NH CARRIER
3
ึ
Engine
compartment No 4 tank No 3 tank No 2 tank No 1 tank
73 200 cu.m. FULLY REFRIGERATED LPG CARRIER
Engine compartment
4000 cu.m. FULLY PRESSURIZED LPG CARRIER
FIGURE 23.1
