Fore End Structure 231
Fo’c’sle deck

Chain pipe

Hatch
anchorageึกษาเท่านั้น---

Ladder Stiffening outside locker
งานห้องสมุด ศูนย์ฝกพาณิชย์นาวี
Stiffener
Foot holes

Centre line Centre line bulkhead Ship’s L
bulkhead PLAN

Cope bar
stiffeners
--- ใช้เพื่อการศ
Cable
ึ
False bottom Centre line bulkhead

Mud box
Welded lugs
False bottom

Welded lugs
Shackle for chain CHAIN
ANCHORAGE
Doubling
Doubling Pin

Cope stiffener
Centre line bulkhead

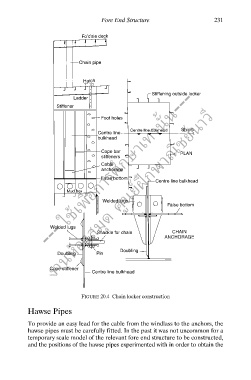

FIGURE 20.4 Chain locker construction

Hawse Pipes

To provide an easy lead for the cable from the windlass to the anchors, the
hawse pipes must be carefully fitted. In the past it was not uncommon for a
temporary scale model of the relevant fore end structure to be constructed,
and the positions of the hawse pipes experimented with in order to obtain the
