230 Ship Construction
Fo’c’sle deck

Pillar
Upp. deck

--- ใช้เพื่อการศึกษาเท่านั้น---
Deck girder
Ships
L
Pillar Breast hooks
งานห้องสมุด ศูนย์ฝกพาณิชย์นาวี
Transverse

Crown of fore peak tank
SECTION AT
TRANSVERSE
Stringer
No. 4 stringer
FORE
PEAK Web
No.3 stringer Stringer
Fore peak
bulkhead ึ

Non W.T. flat

No. 2 stringer STRINGER
Breast hooks

Transverse
No. 1 stringer STRINGER

Transverse

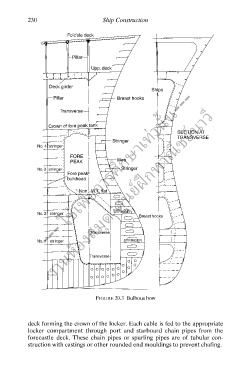

FIGURE 20.3 Bulbous bow

deck forming the crown of the locker. Each cable is fed to the appropriate
locker compartment through port and starboard chain pipes from the
forecastle deck. These chain pipes or spurling pipes are of tubular con-
struction with castings or other rounded end mouldings to prevent chafing.
