188 Ship Construction

Deck longitudinals L
×
Deck 8 mm 100 6 O.B.P.

Transverse
580×8+ 200×15
Length B.P. 137 m
7 mm Beam mid. 20.25 m
Depth mid. 12.81 m
225 × 10
+200 × 15
Void VEHICLE DECK--
615 × 10 + 200 × 20ท่านั้น-
งานห้องสมุด ศูนย์ฝกพาณิชย์นาวี
(casing) Longitudinals 120 × 7 O.B.P.
200 × 8
+ 150 × 15
Deck 12 mm Deck longitudinals 200×9 O.B.P.
Side plating 9 mm Void +250 × 20 Transverse
Side longitudinals 120 × 7 O.B.P .
225 × 10
Longitudinals 120 × 7 O.B.P.
ึ
(casing)
Siide plating 12 mm --- ใช้เพื่อการศึกษาเ Deck longitudinals 200×9 O.B.P.
200 × 9
TRAIN DECK
+ 150 × 20
Deck 12 mm

200 × 8 Transverse
+150 × 20 600×9+ 150 × 10
HEELING 9 mm GARAGE
TANK
500×9
500 × 9 +150 × 15
+150 × 15

Tank top 12 mm Tank top 10 mm Longitudinals 200 × 9 O.B.P.
BALLAST
10 mm 13 mm
TANK

Bilge & Bottom plate
12 mm Floors 10 mm Keel
Stiffeners 160 × 9 15 mm
Bottom longitudinals 200 × 9

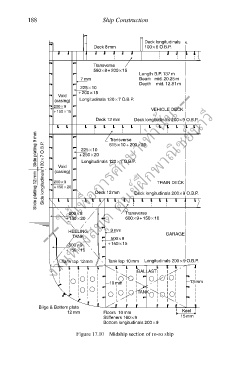

Figure 17.10 Midship section of ro-ro ship
