Ch17-H8070.fm Page 186 Wednesday, October 18, 2006 6:57 AM
Upper deck Stringer 3 Stringer 2 Stringer 1 Tank top
--- ใช้เพื่อการศึกษาเท่านั้น---
Web frames – spacing 2400 mm below stringer 1 4800 mm above stringer 1 Solid floors at Pipe duct 1200 mm spacing
Deadweight 34,000 tonnes
ึ
Length overall 180 m Breadth moulded 30 m Draft moulded 9.75 m

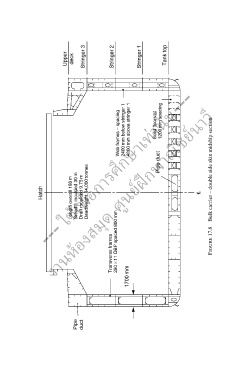

Hatch งานห้องสมุด ศูนย์ฝกพาณิชย์นาวี L Bulk carrier – double side skin midship section
c
Transverse frames 280 × 11 OBP spaced 800 mm FIGURE 17.8
1700 mm
Pipe duct
