184 Ship Construction
Ship’s Upper deck longitudinals (150 mm × 75 mm × 15 mm)
Upp. Deck plating Tripping bracket
(21.25 mm) Stringer plate
(20 mm)

Deck transverse 300 mm deep
Corrugated bulkhead with 200 mm flange Knee
--- ใช้เพื่อการศึกษาเท่านั้น---
Sheerstrake
Tween deck plating (9.5 mm) (210 mm × 20 mm)
งานห้องสมุด ศูนย์ฝกพาณิชย์นาวี
grade ‘E’
Knee
Deck transverse 300 mm deep with 237.5 mm flange

Cargo battens
Length B.P. 132.5 m
Beam mid. 18.42 m Side frame
Depth mid. 11.75 m 340 mm × 17.25 mm O.B.P.

ึ
Side plating (16.5 mm)
Corrugated bulkhead

Middle line strake 12.75 mm
Bilge ceiling
Inner bottom longitudinals 200 mm × 10.5 mm O.B.P.
Bottom longitudinals 200 mm × 13.75 mm O.B.P.
Tank side bracket
Ceiling Tank top 11.25 mm
Stiffener

Keel plate Side girder Bottom plating
1800 mm × 21 mm 16 mm

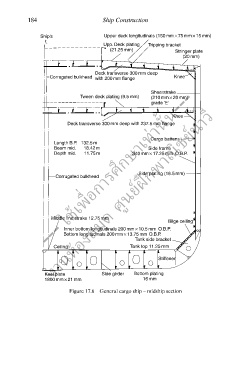

Figure 17.6 General cargo ship – midship section
