Shell Plating and Framing 177
TRANSVERSE FRAMING In a general cargo ship the transverse framing
will consist of main and hold frames with brackets top and bottom, and
lighter tween deck frames with brackets at the tops only (see Figure 17.2).
Scantlings of the main transverse frames are primarily dependent on their
position, spacing and depth, and to some extent on the rigidity of the end
connections. In way of tanks such as oil bunkers or cargo deep tanks the side
frame size will be increased, except where supporting side stringers are fitted
Deck beamนั้น---

งานห้องสมุด ศูนย์ฝกพาณิชย์นาวี

--- ใช้เพื่อการศึกษาเท่า

Tween frame
ึ
Beam
knee
Deck beam

Hold frame
Web
frame

Tank side bracket

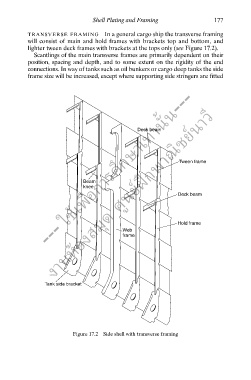

Figure 17.2 Side shell with transverse framing
