Prefabrication 143
1. Double bottom port 7. Tween deck sides
2. Double bottom stbd. 8. Tween deck centre
3. Transverse bulkhead 9. Main deck sides
4 & 5. Side shell 10. Main deck centre
6. Bilge plates 11. Main deck hatch
9 9
11
--- ใช้เพื่อการศึกษาเท่านั้น---
10
7 8 7
งานห้องสมุด ศูนย์ฝกพาณิชย์นาวี

4 5
TRANSVERSE BULKHEAD 3

1 2
6 6
ึ

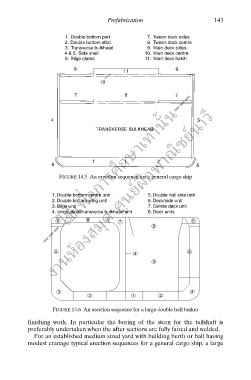

FIGURE 14.5 An erection sequence for a general cargo ship

1. Double bottom centre unit 5. Double hull side unit
2. Double bottom wing unit 6. Deck/side unit
3. Bilge unit 7. Centre deck unit
4. longitudinal/transverse bulkhead unit 8. Deck units
6 8 7 6
8

5 5
4
4

3 3
2 1 2

FIGURE 14.6 An erection sequence for a large double hull tanker

finishing work. In particular the boring of the stern for the tailshaft is
preferably undertaken when the after sections are fully faired and welded.
For an established medium sized yard with building berth or hall having
modest cranage typical erection sequences for a general cargo ship, a large
