130 Ship Construction
1 2
Apply heat Expansion
--- ใช้เพื่อการศึกษาเท่านั้น---
3 4 Single plane bending
งานห้องสมุด ศูนย์ฝกพาณิชย์นาวี
Bend
Contraction
Two plane
bending
ึ
Heat line bending principle
Beam applying load
Top PLATE ROLLS
roller
Plate
Driven Driven
roll roll

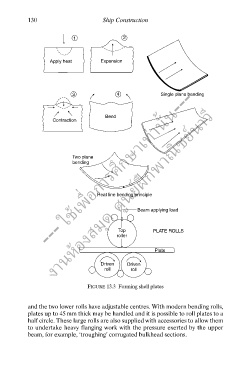

FIGURE 13.3 Forming shell plates
and the two lower rolls have adjustable centres. With modern bending rolls,
plates up to 45 mm thick may be handled and it is possible to roll plates to a
half circle. These large rolls are also supplied with accessories to allow them
to undertake heavy flanging work with the pressure exerted by the upper
beam, for example, ‘troughing’ corrugated bulkhead sections.
