Shipyard Layout 113
Plate and section stockyard

Admin
Marshalling and preparation
offices

--- ใช้เพื่อการศึกษาเท่านั้น---
Plate and
section machining
งานห้องสมุด ศูนย์ฝกพาณิชย์นาวี

Module
assembly
Unit and pallet
assembly areas
preparation

Block fabrication Pipe and
engine shop
ึ

Covered Outfit
building shops
dock
Fitting out
basin

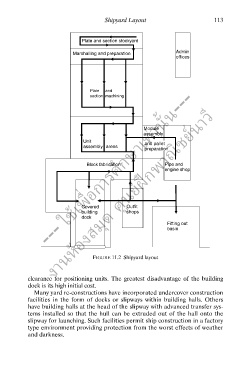

FIGURE 11.2 Shipyard layout

clearance for positioning units. The greatest disadvantage of the building
dock is its high initial cost.
Many yard re-constructions have incorporated undercover construction
facilities in the form of docks or slipways within building halls. Others
have building halls at the head of the slipway with advanced transfer sys-
tems installed so that the hull can be extruded out of the hall onto the
slipway for launching. Such facilities permit ship construction in a factory
type environment providing protection from the worst effects of weather
and darkness.
