Welding and Cutting Processes used in Shipbuilding 91
Electrode
wire
Wire Wire guide nozzle
feed
Arc

CO 2 CO 2
--- ใช้เพื่อการศึกษาเท่านั้น---
Water-cooled
copper shoe
weldสมุด ศูนย์ฝกพาณิชย์นาวี
ELECTRO-GAS
WELDING
Weld

Wire fed into pool
ึ

Weld pool
Slag
Weld Molten
direction metal
Copper IN Cooling
งานห้อง OUT
shoe
Completed
water

ELECTRO-SLAG
WELDING

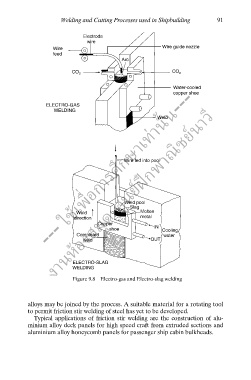

Figure 9.8 Electro-gas and Electro-slag welding

alloys may be joined by the process. A suitable material for a rotating tool
to permit friction stir welding of steel has yet to be developed.
Typical applications of friction stir welding are the construction of alu-
minium alloy deck panels for high speed craft from extruded sections and
aluminium alloy honeycomb panels for passenger ship cabin bulkheads.
